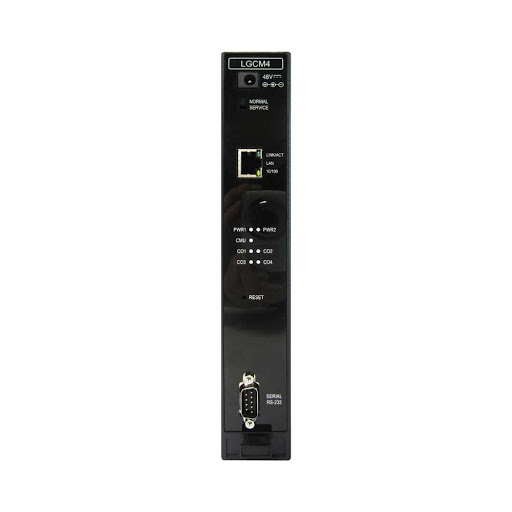

LG Ericsson UCP-LGCM4 4 Port CO Line Module

LG Ericsson UCP-LGCM4 4 Port CO Module

The 4 CO/PBX Loop Start Line interfaces support pulse or DTMF dial signals. Each Interfaces contains ring and loop current detection circuits, speech codec and compression functions and loop signaling circuits. Including a 10/100 Base-T Ethernet interfaces and packet voice processing functions.

External AC/DC adapter included

Features:

• Power jack for the AC/DC adapter
• Power status LED
• Normal/Service switch-In service mode, circuits in use are busied as they return to idle
• RJ-45 Female LAN connector with speed and link/Activity LEDs
• 4 LED, one for status of each CO line
• 1 LED to indicate if a CMU is installed
• DB-9 RS-232 connector
• Reset Switch
• For RJ45 Female connectors
• Ground Lug
• 50 pin back plane connector
